CV-ISO-5 Isolated Bias Controller
Primary-side regulated flyback controller for isolated 5 V / 15 V gate-drive and sensor bias supplies up to 15 W.
Primary-side regulated flyback controller for isolated 5 V / 15 V gate-drive and sensor bias supplies up to 15 W.
Quality note: Specified to meet applicable industry standards. Bureau Veritas certified quality system. Shorter lead-time builds available on qualified demand.
The PDF is the public evaluation brief (specs, pin map, package sketch). The revision-controlled datasheet with SOA curves, land pattern and PPAP pack is issued after an RFQ.
Key specifications
| Topology | PSR flyback |
|---|---|
| Power | up to 15 W |
| Start-up | 18–80 V |
| Protection | OVP, OCP, OTP |
| Package | SO-8 |
Typical applications
- SiC gate-drive bias
- Isolated sensor power
- Industrial I/O cards
Use-case examples are typical, not a substitute for your design review, SOA analysis, and qualification plan.

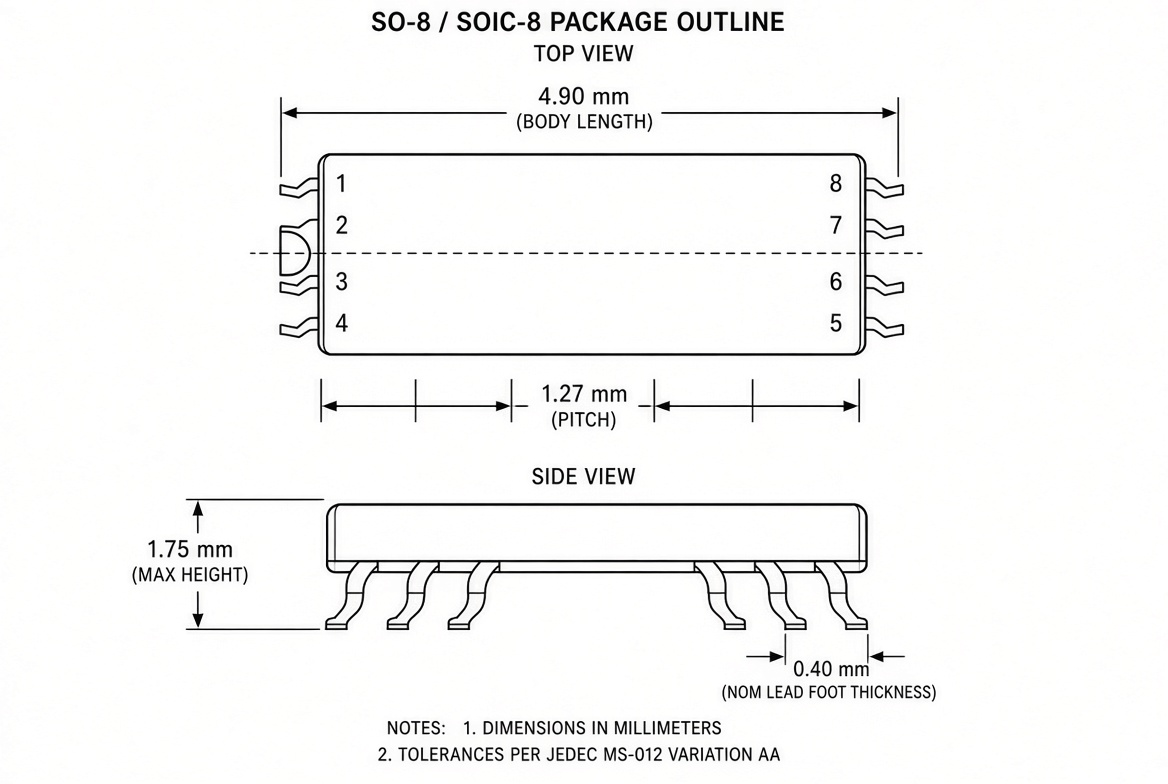

Package outline sketch
Reference drawing for layout planning. Use the product brief PDF for notes and the controlled datasheet for the land pattern released to your program.
